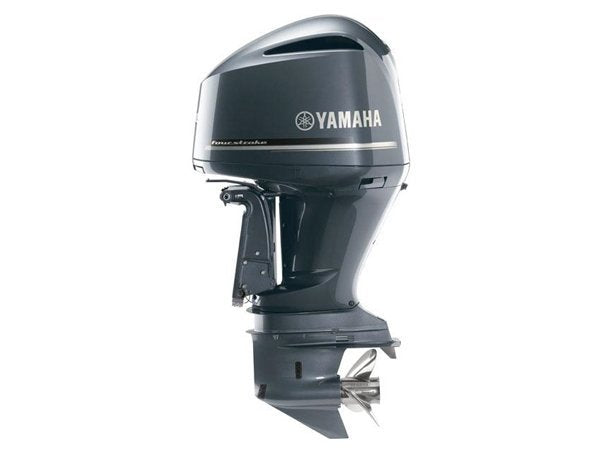

2017 Yamaha F225 4.2L Offshore Digital Outboard Motor

2017 Yamaha F225 4.2L Offshore Digital Outboard Motor FOR THOSE WHO LIKE THEIR V6 LIGHTER, FASTER AND FIERCER. Who says you have to put on the pounds to add more horses? Meet Yamaha’s Next Generation of V6 4.2L Offshore outboards. These award winners are packed with Yamaha’s legendary reliability, which is why so many anglers won’t trust anything else a hundred miles out.   2017 Yamaha F225 4.2L Offshore Digital Outboard Motor Power/Performance

• Mechanically Remote-Controlled Four Stroke V6 Outboard

• Narrow 60° 3.3L Block Design

• Variable Camshaft Timing

• Long Track Induction System

• Precision Multi-Point Fuel Injection

• 6 Independent Fuel Injectors

• 4 Large Radius Valves Per Cylinder

• High Intake Valve Lift

• Double Overhead Camshafts

• In-Bank™ Exhaust

• Exhaust Pressure Reduction System

Reliability/Durability

• TCI Microcomputer

• Electronic Single Throttle Valve (65mm)

• Direct Drive System

• Sacrificial Anodes

• Forged Pistons

• Water Cooled Rectifier/Regulator

• Water Separator

• Direct Ignition

• YDC-30 Aluminum Alloy

• 5-Step Anti-Corrosion Paint Process

• Top Mounted Electrical

• High Output Alternator

• SST Drive, Prop, Shift Shafts

• SST Steering Tube

Convenience/Control

• Command Link® System

• Power Trim & Tilt

• Freshwater Flush

• Counter Rotation "LF" Model

• Yamaha Diagnostic System

• Multi-Charge Monitoring System

• Single Belt Drive System

  2017 Yamaha F225 4.2L Offshore Digital Outboard Motor Year 2017 Manufacturer Yamaha Marine Model Name F225 4.2L Offshore Trim Name Digital Generic Type (Primary) Four Stroke Engine Engine Type V6 (60º) Engine Power 225hp at 5500 rpm (F/LF225) Alternator (Output): 70 Amp Displacement 4.2L (254 ci) Gear Ratio (Primary) (21:12) 1.75:1 Lubrication Wet sump Ignition System: TCI Micro Computer Fuel Injection System: DOHC Fuel Injection VCT Oil Type (Recommended): Yamalube® 4M (See owner's manual) Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89) Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external) Capacities Oil capacity 6.3L/6.0L w/with filter Spark Plug Spark Plug LFR6A-11-00-000 Range Note Full Throttle RPM Range: 5000 - 6000 Dimensions Length Shaft: X = 25" U = 30" Bore 3.78 in. (96 mm) Stroke 3.78 in. (96mm) Weights Dry Weight 25" shaft / 255 kg (562 lbs) Features Starter Electric Note Ethanol Blend Limit: 10% Maximum Steering Angle Maximun: 32° from center, either direction Note Gear Shift: Forward, Neutral, Reverse Intake Design Single Throttle Valve Features C.A.R.B. Rating: 3 Star Cooling Water/Thermostatic Control Features Degree of Tilt: 67° | Degree of Trim: -3° through +16° Note Mounting Centers: 28.6" Exhaust Through Propeller Compression Ratio 10.3:1 Warranty Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
