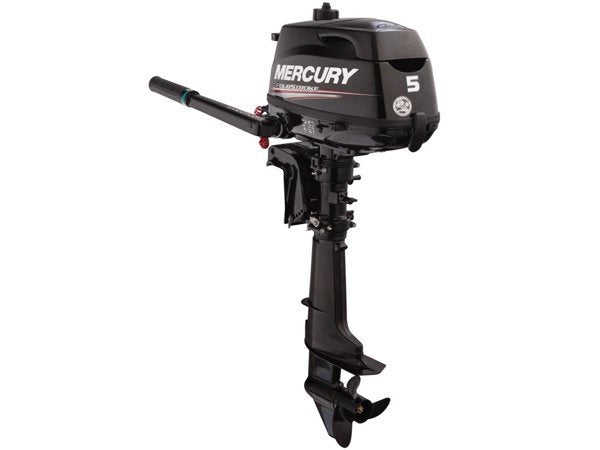

2018 Mercury 5 Hp 5MXLH Outboard Motor

2018 Mercury 5 Hp 5MXLH Outboard Motor The 2018 Mercury 5hp is a great source of portable power for small skiffs, jon boats, and inflatables. It's also a popular choice as auxiliary power for sailboats as well as trolling/kicker motors for larger fishing boats. The 5hp shares many 4hp features plus a larger carburetor and propeller for increased performance and tiller steering. The 59 lb. Mercury 5hp delivers outstanding fuel economy and legendary reliability as well as a manual start. The 5M model features an integrated fuel tank for true grab-and-go portability and a 25 inch long shaft. External tank connection is standard providing the ability to add an optional external fuel tank/fuel line. This model comes with the Mercury Marine 3-year warranty. 2018 Mercury 5 Hp 5MXLH Outboard Motor

• Compact and Lightweight
• Digital CD Ignition with Spark Advance
• High Grade Marine Alloy Construction
• Stainless Steel Water Pump Housing
• Zinc Coated Water Passages
• Rated for Saltwater Use
• Sacrificial Zinc Anodes
• Forward-Neutral-Reverse Gear Shift
• Adjustable Steering Tension Control
• Forward Mounted Gear Shift Selector
• Twist-Grip Throttle with Tension Control
• Integrated Carry Handle
• Thermostat Controlled Water Cooling
• Shallow Water Drive; 6 Trim Positions
• Quiet Through-Propeller-Hub Exhaust
• 1.15 Liter (.30 Gallon) Integral Fuel Tank
• Start-In-Gear Protection
• Low Oil Pressure Warning Indicator
• ESG Over-Rev Protection
• Safety Lanyard Stop Switch
• Owner’s Manual
• Mercury Marine 3-Year Warranty

2018 Mercury 5 Hp 5MXLH Outboard Motor

MODEL	5MXLH
MODEL YEAR	2018
SKU	5MXLH-18
WEIGHT	59.0000
MANUFACTURER	Mercury
COUNTRY OF MANUFACTURE	Japan
HORSEPOWER	5hp
SHAFT LENGTH	25" (Extra Long)
STEERING	Tiller
STARTING	Manual
TRIM & TILT	Manual
FUEL DELIVERY	Carburetor
FUEL TANK	Internal
CYLINDER(S)	1
DISPLACEMENT	123 cc (7.5 cubic inches)
BORE AND STROKE	59 x 45 mm (2.32 x 1.77 inches)
FULL THROTTLE RPM RANGE	4500-5500
IGNITION SYSTEM	Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING	OHV
VALVES PER CYLINDER	2
FUEL TYPE	87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE	0.3 US Gallon (1.15 liter)
OIL TYPE	SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY	15 fl. Oz. (450 ml)
LUBRICATION	Trochoid Pump
ALTERNATOR	Optional 12V 50W 4A (installation required)
COOLING SYSTEM	Water-Cooled, Thermostatically Controlled
SALTWATER RATED	YES
GEAR RATIO	2.15:1
GEAR SHIFT	Forward-Neutral-Reverse (forward mounted shift lever)
PROPELLER	7.7" Diameter X 8.0" Pitch 3-Blade Aluminum
INTERNAL BATTERY	No

2018 Mercury 5 Hp 5MXLH Outboard Motor

WHAT'S IN THE BOX?

• Integral Fuel Tank (0.3 gal)
• Owner's Manual
• Mercury 3-Year Warranty
• Aluminum Propeller
• Mercury 3-Stroke Oil
• Tool Kit
