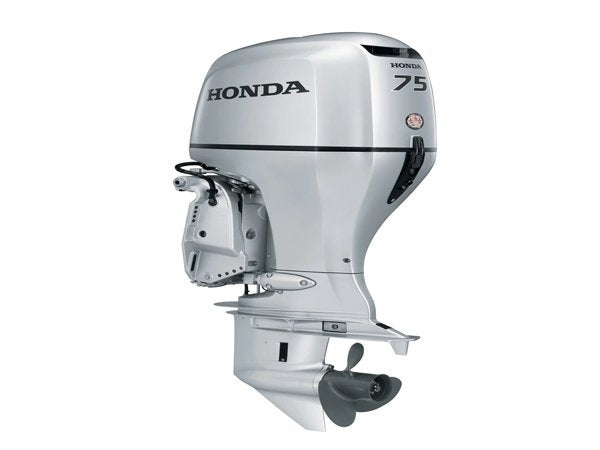

2019 Honda 75 HP BF75D4LRTA Outboard Motor

2019 Honda 75 HP BF75D4LRTA Outboard Motor

Engine Engine Type: 4-Stroke SOHC 4 Cylinder/16 Valves Bore x Stroke: 3.0 x 3.5 in. (73 mm x 89.4 mm) Displacement: 91.4 cu.in. (1,496 cc) Starting: Electric Dimensions Shaft Length: 20 in. (508 mm) Weight: 359 lb. (163 kg) General Trim Method: -4 deg. to +16 deg. Propshaft Horsepower: 75 hp @ 5,500 rpm Full Throttle Operating Range: 5,000-6,000 rpm Gear Ratio / Shift: 2.33:1 / F-N-R Fuel Induction: Programmed Fuel Injection Alternator: 44-Amp (554 watt) Cooling: Water Cooled Warranty: True 5 Warranty

Engine

• Type: 4-Stroke SOHC 4 Cylinder/16 Valves
• Displacement: 1,496 cc (91.4 cu.in.)
• Bore & Stroke: 73 mm x 89.4 mm (3.0 x 3.5 in.)
• Full Throttle RPM Range: 5,000-6,000 rpm
• Rated Power: 75 hp @ 5,500 rpm
• Cooling System: Water Cooled
• Fuel: Unleaded Gas (87 Octane)
• Fuel Delivery: Programmed Fuel Injection
• Ignition System: MicroComputer Programmed
• Starting System: Electric
• Exhaust: Through Hub
• Lubrication: Wet Sump
• Trim Range: -4 deg. to +16 deg.
• Tilt Range: 68 deg.

Drive

• Gear Ratio: 2.33:1
• Gear Shift: F-N-R
• Alternator (Electric Start): 44-Amp (554 watt)
• Battery Charging Power: 35 Amp
• Propeller: Optional
• Power Trim & Tilt: Standard
• Oil Pressure Alert: Standard
• Temperature Alert: Standard
• Rev-Limiter: Standard
• Speedometer Pickup: Standard

Dimensions

• Overall Width: 480 mm/18.9 in.

Transom Height

• L Type: 508 mm/20 in.

Dry Weight

• L-Type: 163 kg/359 lb.
